WATS Station Map (graphical world map)

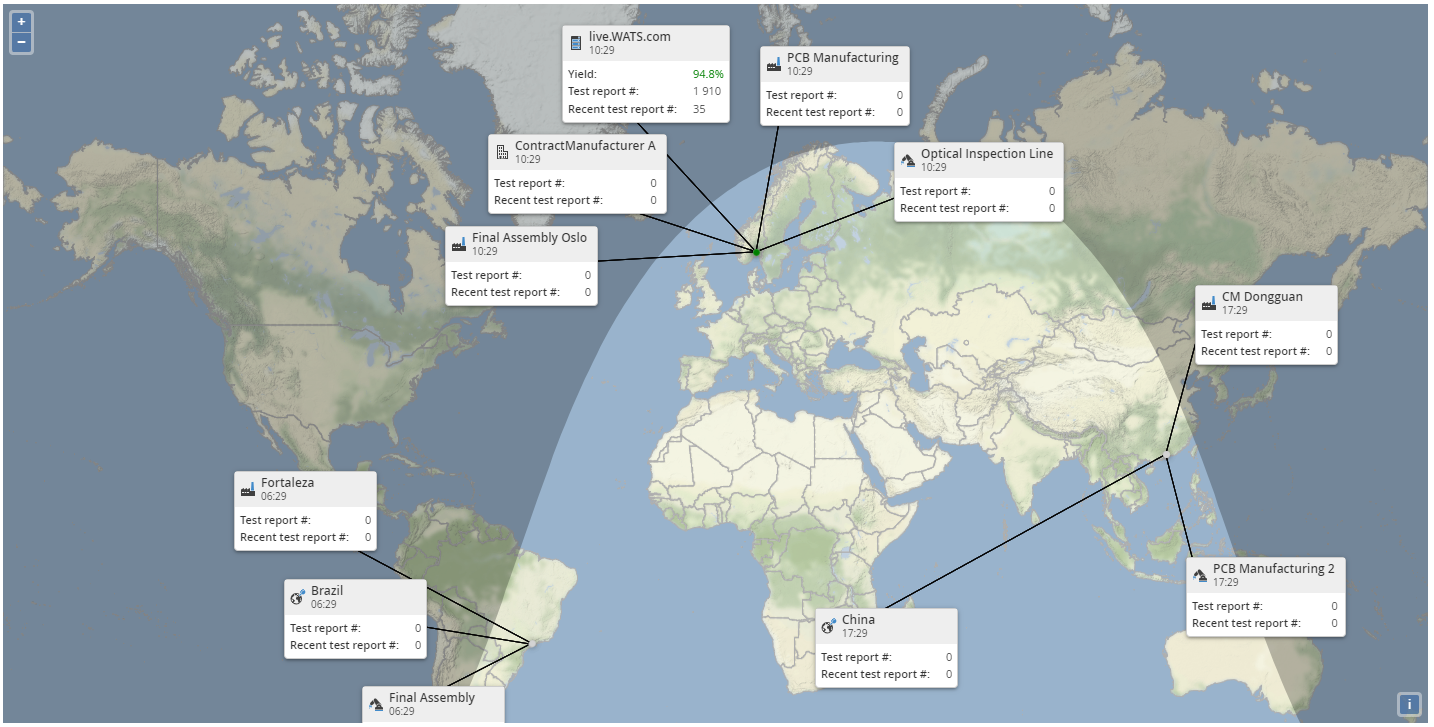

WATS Dashboards supports a Station Map widget, showing your virtual levels, as well as volume and yield in a world map. It uses GPS coordinates to automatically plot the and servers and levels on the map, which additionally gives you a graphical indication of their current health status and the number of UUT/UUR reports transferred or received.

The station map comes as both a predefined global dashboard, and as a widget that can be used in your own dashboards.

Creating virtual levels and assigning GPS coordinates can be done in the System manager. Please see the following articles for more information:

Define your Virtual Manufacturing Levels
Finding GPS coordinates for servers and Virtual levels

WATS Station Map Dashboard

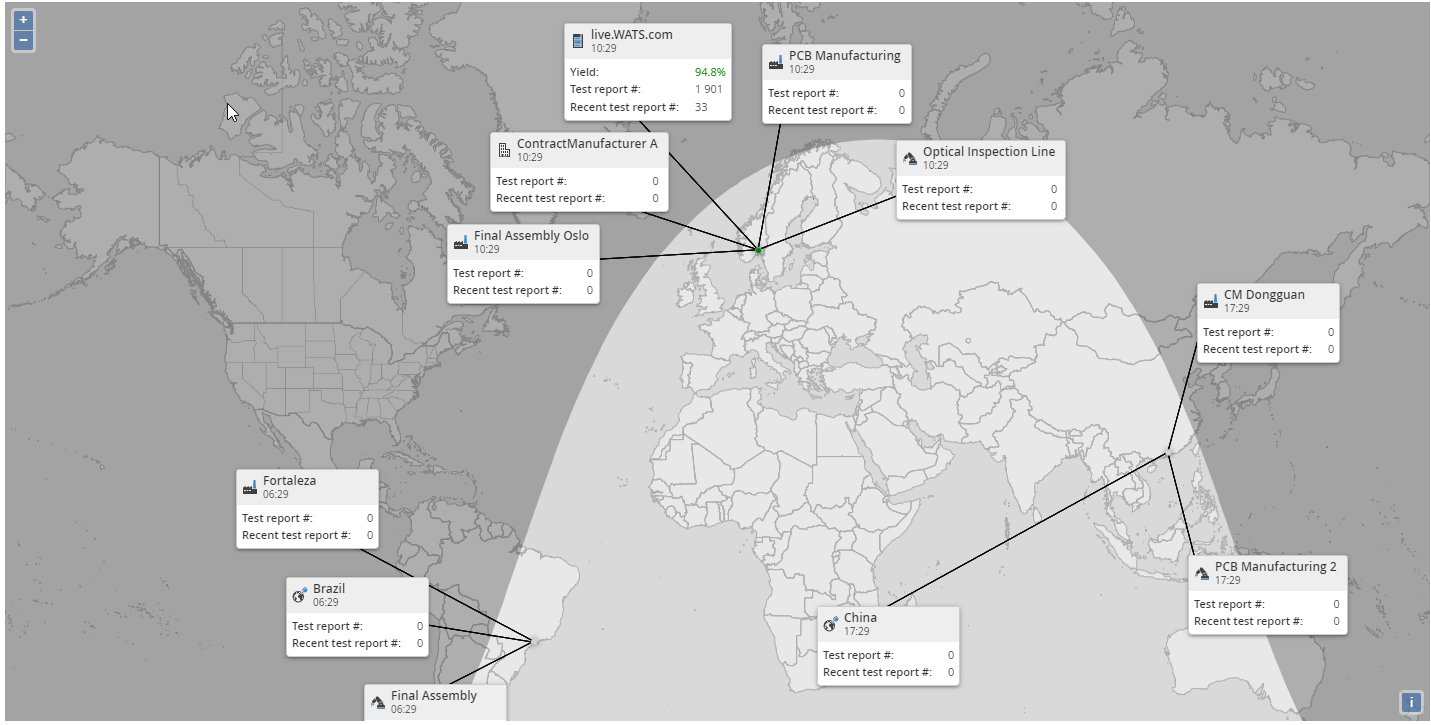

WATS comes with the predefined global dashboard Station Map. The dashboard consists of the Station Map widget and widgets showing yield and test status. This dashboard can be cloned or edited to your needs.

WATS Station Map Widget

To use the Station Map widget, add it to your dashboard using the Widget Toolbox > Add > Station Map. Once the widget is placed, use Widget Toolbox > Edit to edit the settings and filters for the widget.

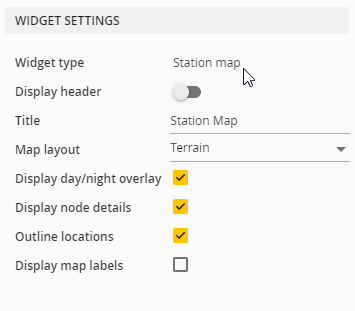

Widget settings

In the widget settings, you ca show or hide the widget title, select from different map-layouts and show or hide different data for your locations.

Click Save to apply your changes.

Location nodes

Each location will display nodes with information about each location.

NOTE: When a server or level is displayed on the map, you can customize the location of its label by placing the mouse cursor above it while you drag it (hold left mouse button) to the desired location.  You’ll see a line that connects the label with the point of the GPS coordinate.
